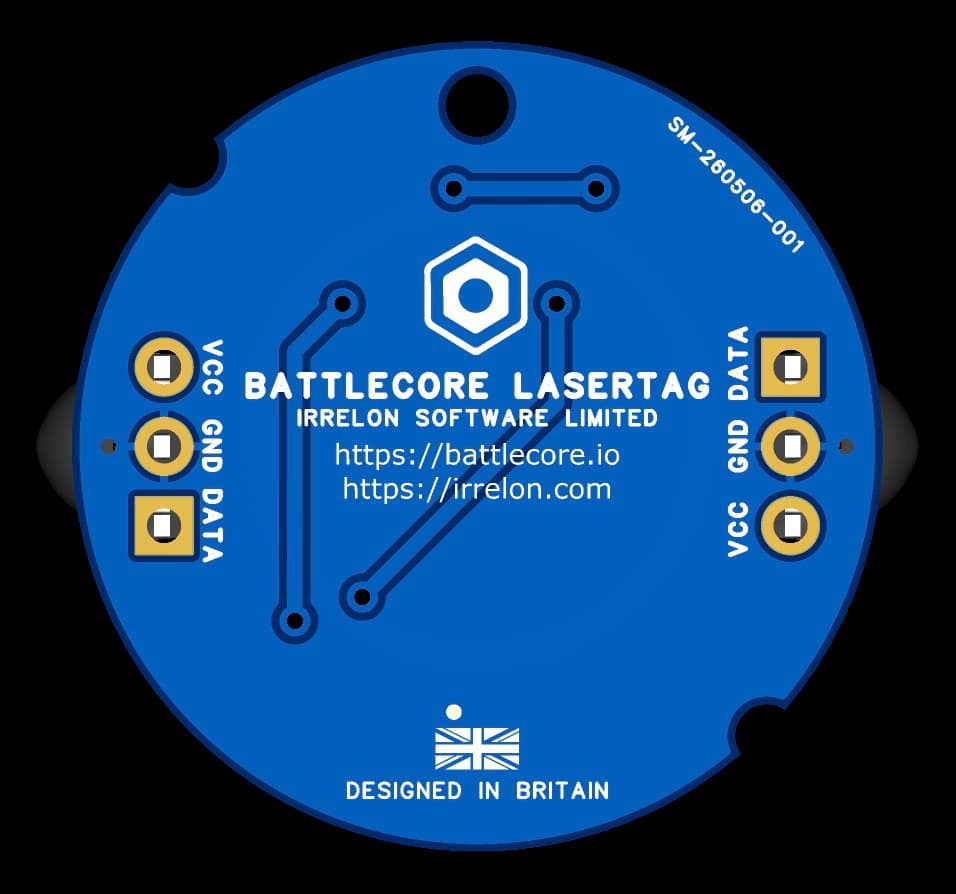

BattleCore Sensor Module
The BattleCore Sensor Module is a compact, wearable hit-detection module designed to plug into the BattleCore Headband Mainboard as one of up to four sensors distributed around the head for independent hit zones.

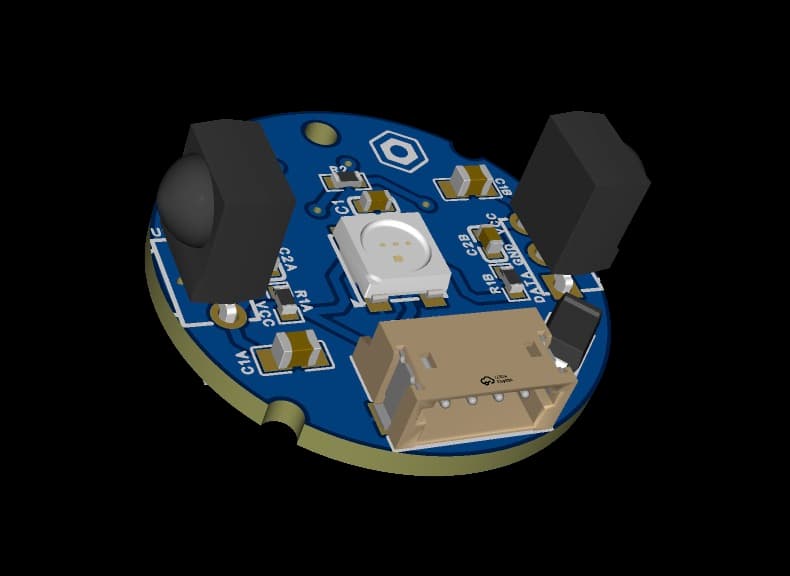

It features 2x IR receivers with 90-degree cones of reception, mounted at a 45-degree angle so that together they cover a continuous 180-degree field of detection from a single physical position. Both IR receivers are multiplexed onto a single input line on the host mainboard, simplifying wiring and freeing GPIO on the headband mainboard.
The module also carries a single addressable RGB LED, controlled directly by the headband mainboard MCU, so each sensor module can independently indicate hit feedback, team colour, status, or game-driven effects.
Full documentation, design files, and community support available. Licensed under our BattleCore Community Hardware License.
Design files and documentation will be available soon
Specifications
2x IR receivers, 90-degree cone each
Mounted at 45 degrees to provide a continuous 180-degree field of coverage
Both receivers multiplexed onto a single input line
1x addressable RGB LED, controlled by the host mainboard MCU
Designed to pair with the BattleCore Headband Mainboard
Up to 4x modules supported per headband
Documentation & Design Files
Schematics - Coming Soon
PCB Layout Files - Coming Soon
Bill of Materials - Coming Soon
Assembly Guide - Coming Soon
License Information
This hardware design is released under the BattleCore Community Hardware License.
You are free to:
- ✓ Use this design for personal projects
- ✓ Modify and improve the design
- ✓ Operate a paid laser tag service using hardware clearly branded as BattleCore
- ✓ Share modifications with the community under the same license
This license is copyleft — modifications must remain under the same license and Irrelon Software Limited may request a copy. Selling the hardware, kits, assembled units, or any product containing the hardware is not permitted under this license and requires a separate commercial agreement. See the full license for details.
