BattleCore Tagger Mainboard

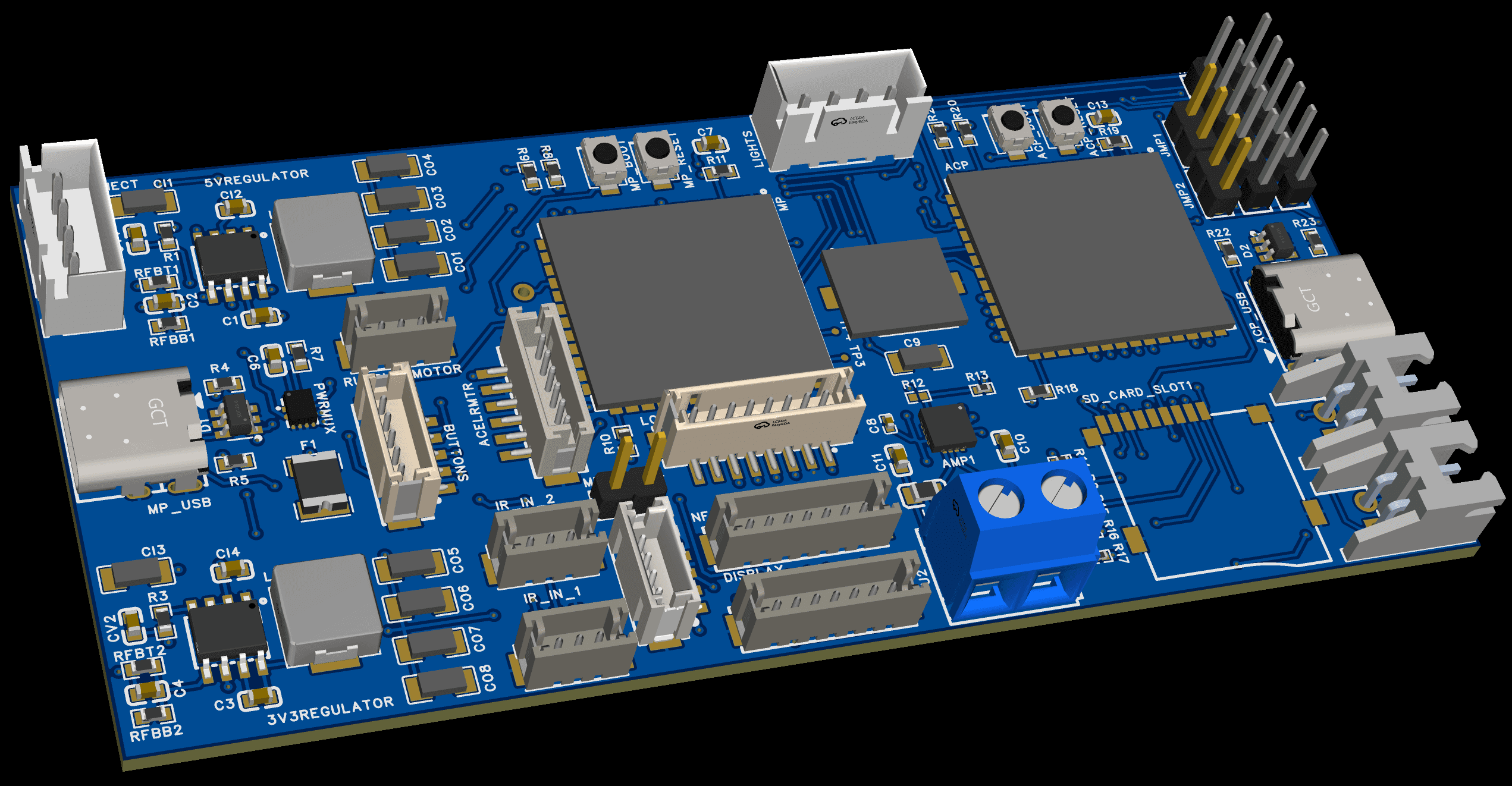

The BattleCore Tagger Mainboard is the heart of the BattleCore laser tag system. This open hardware design provides all the core functionality needed to build a professional-grade laser tag system.

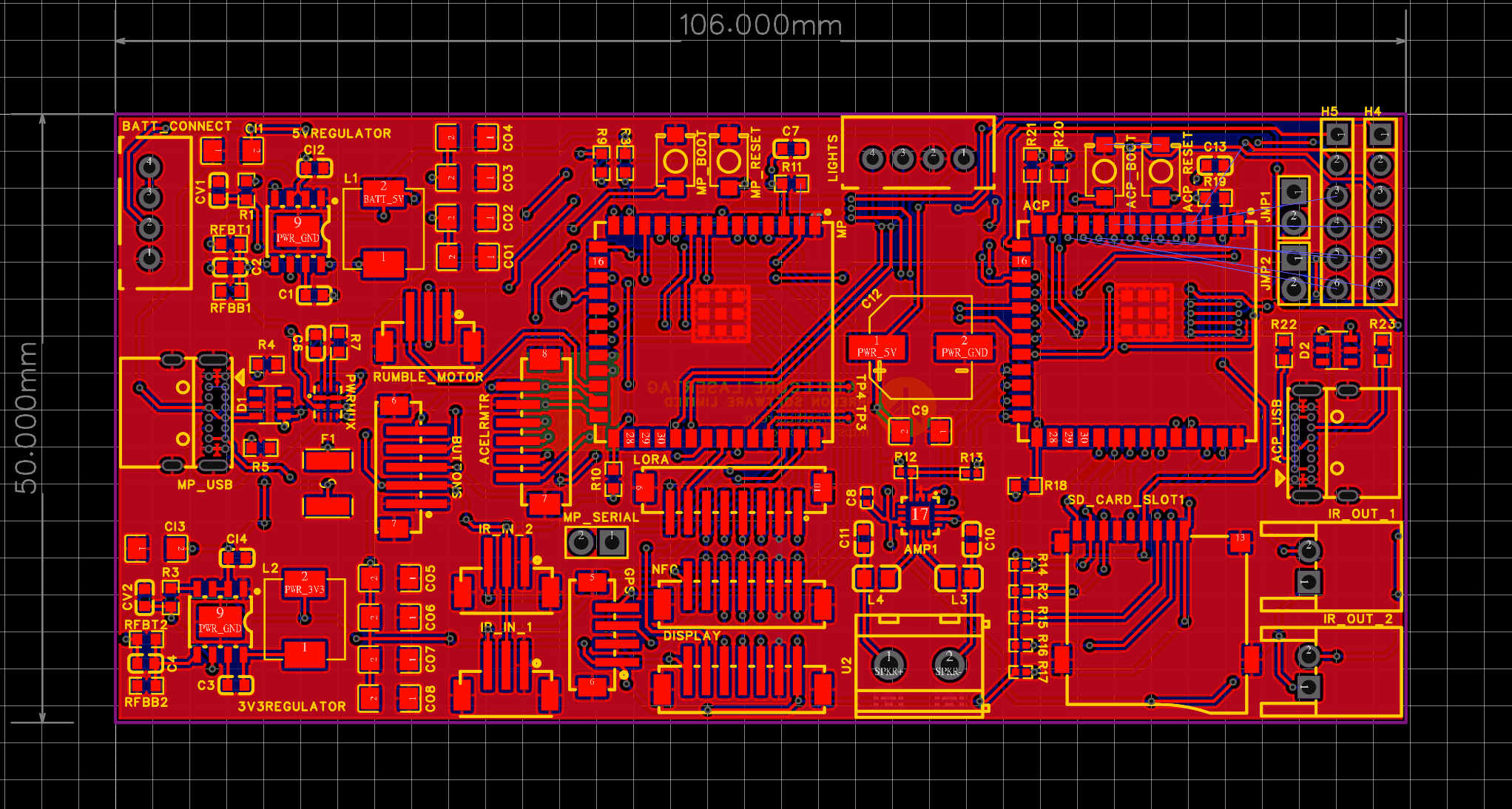

Designed with modularity in mind, the mainboard features multiple expansion ports for peripherals, efficient power management, and robust wireless capabilities. All schematics, PCB layouts, and bill of materials are openly available under the BattleCore Community Hardware License.
Perfect for makers, developers, and professionals who want to build their own laser tag systems.
Full documentation, design files, and community support available. Licensed under our BattleCore Community Hardware License.
Specifications
ESP32-S3 Microcontroller
Dual-core processor
WiFi 802.11 b/g/n
Bluetooth 5.0 (LE)
Multiple GPIO expansion ports
IR transmitter/receiver interfaces
Power management system
MicroSD card slot
USB-C programming interface
Operating voltage: 3.3V-5V
Dimensions: TBA
Documentation & Design Files
Schematics - Coming Soon
PCB Layout Files - Coming Soon
Bill of Materials - Coming Soon
Assembly Guide - Coming Soon
Programming Guide - Coming Soon
License Information
This hardware design is released under the BattleCore Community Hardware License.
You are free to:
- ✓ Use this design for personal projects
- ✓ Modify and improve the design
- ✓ Operate a paid laser tag service using hardware clearly branded as BattleCore
- ✓ Share modifications with the community under the same license
This license is copyleft — modifications must remain under the same license and Irrelon Software Limited may request a copy. Selling the hardware, kits, assembled units, or any product containing the hardware is not permitted under this license and requires a separate commercial agreement. See the full license for details.
